There is a category of building where cleaning is not really a tidying job at all. A terminal, a convention centre or a large shopping complex is a continuous expanse of floor that has to be kept at a consistent standard across its entire length, for as long as it is open, without ever visibly falling behind.

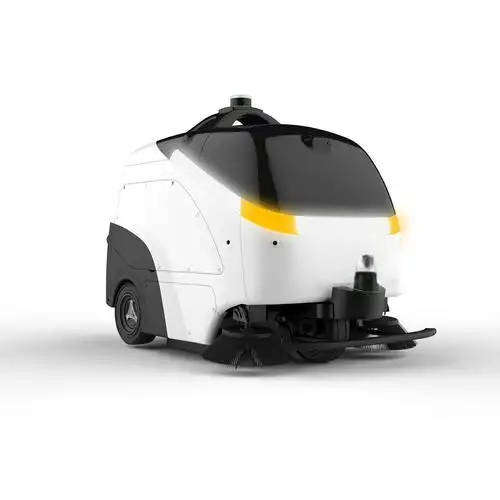

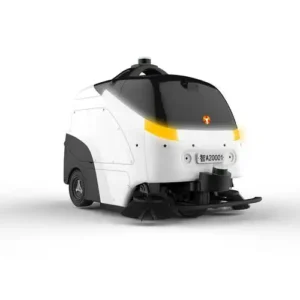

The Cleaning Robot S100-N is designed for exactly that problem. Its purpose is not to be the most compact or the most nimble unit on the market, but to hold a wide-area standard reliably, day after day, in venues where the floor is the first thing every visitor sees.
Where the S100-N sits in the range
This is the wide-area specialist in the Jaelin Tech line. The SW80A covers large floors efficiently; the S100-N is aimed at venues where the floor area is genuinely expansive and the traffic never really stops. If your building is a collection of rooms and corridors rather than a continuous expanse, a smaller model will serve you better and cost less to run.
What sets the S100-N apart
- Tuned for wide-area coverage where long, continuous runs matter more than tight turning
- Built to hold a consistent standard across a very large floor, not just in the busy centre
- Navigation that continues working through sustained high footfall
- Multiple cleaning modes to handle the different soiling patterns across a large venue
- Automatic return to dock, so a long operating window is not interrupted by manual recharging
- Remote task management and real-time status for operations teams running a 24-hour site
- Low-noise operation, which is essential in venues that are never closed to the public
S100-N Specifications
| Dimensions (L x W x H) | 1706 x 927 x 1199 mm |
|---|---|
| Machine weight | 395 kg |
| Sweeping width | 1000 mm |
| Max. cleaning efficiency | 3,000 m²/h |
| Water tank / trash bin | 60 L / 60 L |
| Battery | 24 V / 200 Ah |
| Runtime per charge | 6 hours (30 – 40 km) |
| Charging time | 4 – 4.5 hours |
| Turning radius / minimum pass width | 1500 mm / 1700 mm |
| Max. travel speed | 5 km/h |
| Operating environment | Indoor and outdoor; −15 °C to 40 °C; max. slope 10° |
| Suitable surfaces | Cement, asphalt, rubble, terrazzo, small square tile, marble |
Best suited to
Airport terminals and departures halls. Railway and metro concourses. Convention and exhibition centres. Large shopping complexes and retail malls. Stadium and arena concourses. Any venue where a single continuous floor surface is in public view from opening to closing.
The S100-N is also rated for outdoor work, not just indoor concourses. The same unit handles yards, loading aprons, car parks, campus roads and perimeter paths on cement, asphalt, terrazzo, tile and marble, in ambient temperatures from −15 °C to 40 °C. If your site mixes indoor floors with outdoor approaches, one machine covers both.
Deployment and support
Jaelin Tech supplies the S100-N worldwide, with commissioning support, operator training, spare parts and remote technical support. Wide-area deployments are usually a fleet question rather than a single-unit question, so we will plan the number and scheduling of units against your actual floor area and operating hours. OEM and ODM cooperation is available for distributors and operators.
Frequently asked questions
How many S100-N units does a large venue need?
It depends on floor area, operating hours and the standard you are holding to. Send us the three and we will model it for you rather than guess.
Can it be scheduled around peak arrival periods?
Yes. Cleaning windows can be set around known traffic peaks, and the unit returns to dock between them without operator involvement.
Is it suitable for a site that never closes?
That is the environment it was chosen for. Low-noise operation and automatic docking let it work alongside the public rather than requiring a shutdown.
